Air Shower

Name: Air Shower
Brand: CECON POLLUTECH SYSTEM PVT. LTD.
Price: 150000 INR
Availability: InStock

150000 INR

Get a Price/Quote

Product Details:

Material Stainless Steel / CRCA with powder coating
Maintenance Type Easy to maintain, filter replaceable
Pressure Range 0.75 - 1 bar
Filtration Property HEPA Filtration (0.3 micron)
Installation Type Floor Mounted
Connectivity Type Standalone / Panel Operated
Humidity % 60%
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Air Shower Price And Quantity

Price Range 125000.00 - 500000.00 INR
Price 150000 INR
Minimum Order Quantity 01 Piece

Air Shower Product Specifications

Dimension (L*W*H) 900 x 900 x 2100 mm (Standard, Custom sizes available)
Voltage 220V / 415V
Equipment Type Air Shower
Color Powder Coated or Stainless Finish
Control System Microprocessor based
Efficiency (%) 99.997%
Output HEPA filtered air
Dust Particle removal by high velocity jets
Capacity 1 Person, 2 Person, 3 Person (Various as per requirement)
Application Pharmaceutical, Clean Room, Biotech, Electronics, Laboratory, Food Processing
Flow Rate 20 m/s - 25 m/s (Nozzle Air Velocity)
Energy Consumption Low, power efficient
Ventilation Forced air circulation
Frequency 50 Hz / 60 Hz
Features Interlocking Door System, Emergency Stop, Indicator Lights
Filters Pre-Filter + HEPA Filter (0.3 micron)
Dust % 99.997% removal (with HEPA filter)
Noise Level 68 dB(A)
Filtration Property HEPA Filtration (0.3 micron)
Pressure Range 0.75 - 1 bar
Material Stainless Steel / CRCA with powder coating
Maintenance Type Easy to maintain, filter replaceable
Weight 250 kg (Approx)
Automatic Grade Full Automatic
Humidity % 60%
Hole Size Nozzle: 20-30 mm
Power 440
Connectivity Type Standalone / Panel Operated
Installation Type Floor Mounted

Door Interlocking Electromagnetic
Sensor Type Infrared / Proximity sensor (standard on request)
Ingress Protection IP54 (for electrical panel)
Surface Finish Polished / Powder Coated
No. of Nozzles 8-16 (customizable as per model)
Face Velocity above 20 m/s
Operating Temperature 10C to 40C
Compliance ISO 14644-1 & GMP Standards
Door Material Toughened Glass with SS/CRCA Frame
Time Setting Adjustable 0-120 seconds
Door Type Swing (automatic/manual, interlocked)
Lighting LED / CFL (encased, cleanroom compatible)

Air Shower Trade Information

Payment Terms Cash in Advance (CID), Cheque, Cash Advance (CA)
Supply Ability 6 Piece unit Per Month
Delivery Time 6 Week
Main Domestic Market All India
Certifications ISO, TE

Product Description

Experience the potent performance of our Air Shower-an essential for contamination control! With customizable nozzles (8-16) and a robust swinging door crafted from toughened glass and a decorated SS/CRCA frame, this hot deal combines reliability and rare efficiency. Boasting a HEPA filter (99.997% dust removal) and soaring air velocity above 20 m/s, it delivers cleanroom-ready protection in pharmaceutical, biotech, electronics, and food processing industries. The energy-efficient system is fully automatic, cost-effective, easy to maintain, and adheres to ISO 14644-1 & GMP standards.

Advantage & Features: Elevate Cleanroom Standards

The Air Shower provides unparalleled contamination control with its adjustable HEPA filtration, customized nozzle configuration, and potent jet velocities. Its elegantly polished or powder-coated finish enhances decor, while automatic swing doors and a sophisticated interlocking system ensure secure operations. With a microprocessor-based control system and forced air circulation, it supports reliable use in sensitive environments, making it an ideal advantage for facilities prioritizing hygiene and efficiency.

Market, Certification & Sample: Trusted Service Across India

Our Air Shower holds ISO 14644-1 & GMP certifications, ensuring compliance with international cleanroom standards. The proposal amount is tailored per client need, and comprehensive transport services are offered to minimize total expenditure. Serving India's bustling markets-including pharmaceutical, laboratory, electronics, and food processing sectors-samples are available on request, helping you make informed investment decisions in this reliable, cost-effective equipment.

FAQ's of Air Shower:

Q: How does the air shower maintain a clean environment?

A: The air shower uses high-velocity jet nozzles and HEPA filters to remove up to 99.997% of particles. This process ensures personnel and items entering cleanrooms are thoroughly decontaminated before entry.

Q: What makes this air shower a cost-effective solution?

A: Its low power consumption, replaceable filters, robust design, and minimal maintenance requirements combine to reduce total operational expenditure while delivering peak performance.

Q: Where can the air shower be installed and used?

A: Designed for versatility, the air shower is suitable for areas like pharmaceutical production, biotechnology labs, electronic assembly lines, food processing plants, and research laboratories.

Q: When can I request a sample or installation proposal?

A: Samples and installation proposals are available upon request. Our sales team provides a customized proposal amount and coordinates transport services to ensure timely delivery and setup.

Q: What is the process for adjusting air shower settings?

A: All operational parameters, including time (0-120 seconds), air velocity, and door interlocking, are adjustable via a user-friendly microprocessor-based control system.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Old Image' category

Baggage Disinfectant Machine Material : Stainless Steel Weight : 180 kg Application : Airport, Metro, Malls, Hospitals Capacity : 50100 baggage/hour Ventilation : Yes Energy Consumption : Low Features : Automatic conveyor, Sensor driven operation, Safety lock system Dimension (L*W*H) : 1700 x 800 x 1200 mm Color : Grey Control System : Digital Voltage : 220 V Power : 2200 W Installation Type : Other, Floor mounted Maintenance Type : Other, Low maintenance Automatic Grade : Automatic Frequency : 50 Hz Noise Level : Low noise operation Efficiency (%) : 99.9 Output : Disinfected baggage Filters : Other, HEPA Dust % : < 0.05% Equipment Type : Other, Baggage Disinfectant Machine Dust : Other, Low Humidity % : 595% Connectivity Type : Standalone Filtration Property : Other, Microbial filtration

Send Inquiry

Sanitary Napkin Incinerator With Smoke Control Unit Price : 16000 INR Minimum Order Quantity : 1 Material : Mild Steel Powder Coated Weight : 22 Kg Application : Sanitary Napkin disposal for Schools, Colleges, Hospitals, Public Toilets, Offices, etc. Capacity : 1520 Napkins per cycle Ventilation : Fitted with chimney/smoke control unit Energy Consumption : Low power consumption Features : Odorless operation, Rapid incineration, Userfriendly digital panel, Low running cost Dimension (L*W*H) : 380 x 340 x 900 mm Color : Blue Control System : Other, Digital Timer and Safety CutOff Voltage : 220 V Power : 1000 W Installation Type : Other, Wall Mount/Free Standing Maintenance Type : Other, Low maintenance Automatic Grade : Automatic Frequency : 5060 Hz Noise Level : <40 dB Efficiency (%) : 99% Output : Ash residual ~13% Filters : Other, Ceramic/activated carbon filter Dust % : <1% Dust : Other, Very low Connectivity Type : Manual Start/Stop Filtration Property : Other, Highefficiency smoke filtration Automation : Automatic Display : Other

Send Inquiry

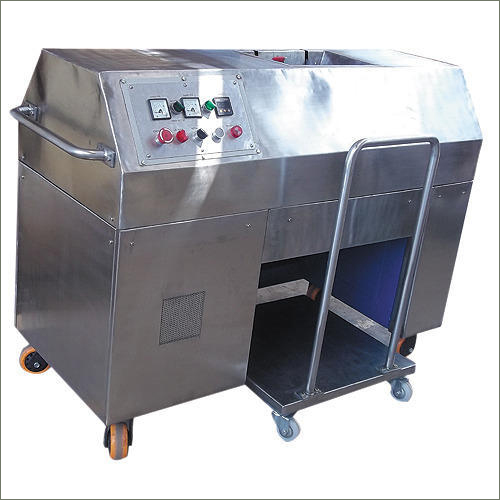

Composting Machine Price : 250000 INR Minimum Order Quantity : 1 Material : Stainless Steel Weight : 250500 Kg Application : Organic Waste Composting Capacity : 30 Kg/hr Ventilation : Yes, inbuilt fans Energy Consumption : 35 kW/hr Features : Odorless operation, Low maintenance, Portable wheels Dimension (L*W*H) : 1200 x 900 x 1350 mm Color : Metallic Silver Control System : Other, Digital Control Panel Voltage : 220440 V Power : 440 Volt (v) Installation Type : Other, Floor Standing Maintenance Type : Other, Low Maintenance Automatic Grade : Full Automatic Frequency : 5060 Hz Noise Level : <60 dB Efficiency (%) : 8595% Output : Organic Compost Dust % : <3% Equipment Type : Other, Composting Machine Dust : Other, Low Humidity % : 4050%
